Vip valves
M 300 V
Vip valves
Both double acting and spring return VIP valves (either normally open or normally closed) are available in sizes ranging from 3/8 to 2
| Technische Daten/Technical features | |
| Steuermedium/Control media |
Gefilterte nicht unbedingt geschmierte Druckluft* Filtered, compressed air, not necessarily lubricated* |
| Steuerdruck/Air supply | |
| doppelt wirkend/double acting | 3 bar ... 8 bar |
| einfach wirkend/single acting | 4,2 bar ... 8 bar |
| Betriebsdruck/Pressure | max. 10 bar. |
| Temperaturbereich/Temperature | |
| NBR | - 20°C ... + 80°C |
| Viton | - 20°C ... + 150°C |
| EPDM | - 20°C ... + 150°C |
| Vakuumdicht/Vacuum thightness | 740 mm Hg |
Features
Both double acting and spring return VIP valves (either normally open or normally closed) are available in sizes ranging from 3/8" to 2".
GAS threaded ends as per UNI/ISO 7/1 Rp - DIN 2999 (NPT treads on request) with control fluid connections as per NAMUR interface.
An improved fluid dynamic allows minimum pressure losses. See flow pressure diagram. VIP valves can be used in any mounting position (horizontal, vertical or oblique). They can be provided with seals in NBR, VITON or EPDM.
NBR: suitble for air, gas, oils, water etc.
VITON: perfectly suitable for most fluid. Unsuitable for steam.
EPDM: Perfectly suitable for hot water, steam. Unsuitble for mineral products (oils, grease, etc.).
Information about material compatibilities can be found in the specific table.
For further information about gas, explosive fluids etc. please contact our technical department.
Valve opening and closing can be signalled by means of external magnetic limit switches (to be requested on ordering the valves, as they cannot be assembled afterwards.

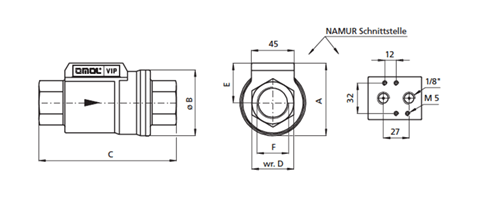

| Dimensions | Luftverbrauch | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | øP | A | øB | C | D | E | DA1 | SR2 | DA1 | SR2 | |
| mm | mm | mm | mm | mm | mm | mm | dm3/c | dm3/c | kg | kg | |
| 10 | 3/8“ | 10 | 54 | 46,00 | 98 | 22 | 31 | 0,024 | 0,012 | 0,80 | 0,85 |
| 15 | 1/2“ | 15 | 60 | 51,70 | 112 | 27 | 34 | 0,035 | 0,017 | 1,00 | 1,05 |
| 20 | 3/4“ | 20 | 70 | 63,50 | 135 | 33 | 39 | 0,063 | 0,031 | 1,59 | 1,69 |
| 25 | 1“ | 25 | 76 | 69,00 | 143 | 41 | 42 | 0,080 | 0,040 | 1,80 | 1,88 |
| 32 | 1 1/4“ | 32 | 92 | 86,00 | 165 | 50 | 49 | 0,150 | 0,075 | 3,13 | 3,41 |
| 40 | 1 1/2“ | 40 | 102 | 96,00 | 180 | 60 | 54 | 0,219 | 0,109 | 3,50 | 3,70 |
| 50 | 2“ | 50 | 115 | 109,00 | 207 | 75 | 60 | 0,310 | 0,155 | 5,50 | 5,80 |
More technical details as PDF document
1) „DA“ VIP Double Acting
2) „SR“ VIP Spring Return
