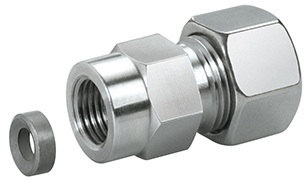

Manometer-Anschlussverschraubungen
MA-V F-758 NPT
Manometer-Anschlussverschraubungen
Weitere Informationen:
Technische Daten und Montageanleitung Schneidringverschraubungen
| Reihe | PN | Ra | NPT | d | S2 | S1 | L2 | l2 | Artikel | |||
| L | 250 | 6 | 1/4 - 18 | NPT | 2,50 | 14 | 19 | 39,50 | 24,50 | MA-V 06 L | 1/4 | NPT |
| L | 250 | 8 | 1/4 - 18 | NPT | 5,50 | 17 | 19 | 39,50 | 24,50 | MA-V 08 L | 1/4 | NPT |
| L | 250 | 10 | 1/4 - 18 | NPT | 5,50 | 19 | 19 | 40,50 | 25,50 | MA-V 10 L | 1/4 | NPT |
| L | 250 | 12 | 1/4 - 18 | NPT | 5,50 | 22 | 19 | 40,50 | 25,50 | MA-V 12 L | 1/4 | NPT |
| S | 630 | 6 | 1/2 - 14 | NPT | 3,50 | 17 | 27 | 52,50 | 37,50 | MA-V 06 S | 1/2 | NPT |
| S | 630 | 8 | 1/2 - 14 | NPT | 3,50 | 19 | 27 | 52,50 | 37,50 | MA-V 08 S | 1/2 | NPT |
| S | 630 | 10 | 1/2 - 14 | NPT | 7,00 | 22 | 27 | 53,00 | 36,50 | MA-V 10 S | 1/2 | NPT |
| S | 630 | 12 | 1/2 - 14 | NPT | 7,00 | 24 | 27 | 53,00 | 36,50 | MA-V 12 S | 1/2 | NPT |
